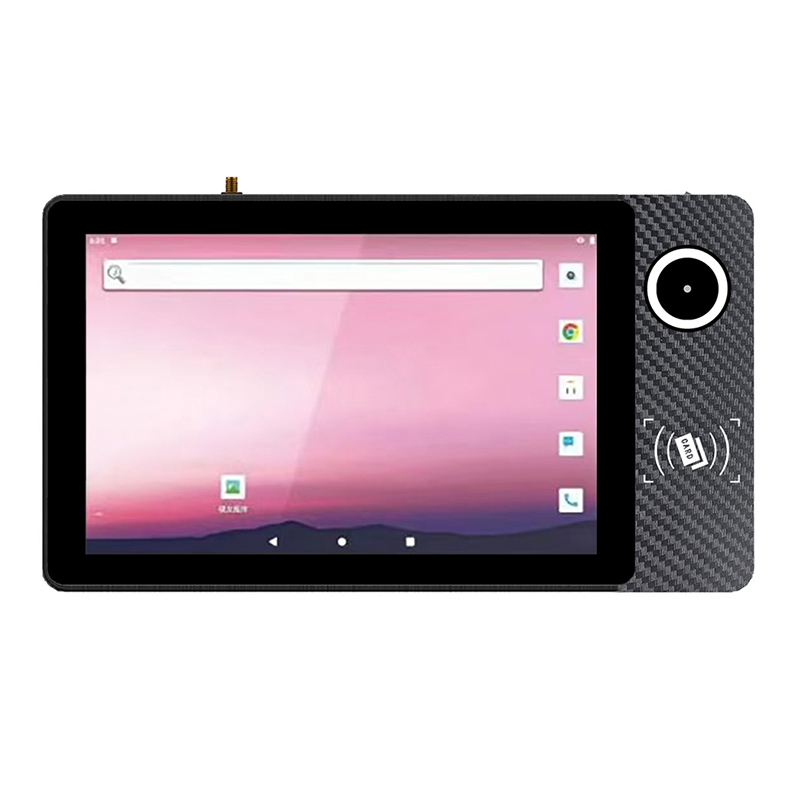

ATG10AR
Rockchip 3568 Quad-Core Processor, 8GB RAM+128GB Storage,Smooth Multitasking Performance
Rich Integrated Professional Interfaces, USB 3.0, RS232/485, and More for Easy Peripheral Connectivity
Supports RFID Reader Functionality, Camera/2D Barcode Scanner ,Customizable to Requirements
Native Android 13 OS, High Compatibility and Seamless Integration with Existing Systems
Wide Operating Temperature: -20℃ to 60℃, Stable Performance in Harsh Industrial Environments such as Factories and Warehouses
Dual-Band WIFI 6+Bluetooth 5.0, with Optional 4G Communication Module
10.1"High-PerformanceIP65Rich I/ORK3568
CPU
RK3568 Quad-core
RAM
4GB
SSD
64GB
Display Screen
LCD, 10.1" 800*1280, 60Hz
Touch Panel
G+G, 10 point, capacitive touch screen
MIC
Simulate MIC*1
Speaker
4Ω 3W*2
G-Sensor
OK
2G/3G/4G
Optional
WiFi
WIFI 6,802.11ax/ac/b/g/n/ac (1T1R)
BT
BT5.0 (BLE) class1 Transmission distance: 10m
Battery
No built-in battery
Adapter
Input: 100-240V; Output: 12V/4A
Indicator Light
Dual-color light, light up during operation, and turning off when the device is powered down
LED Indicator Light
3-color for 4 different status indications
OS
Android 13

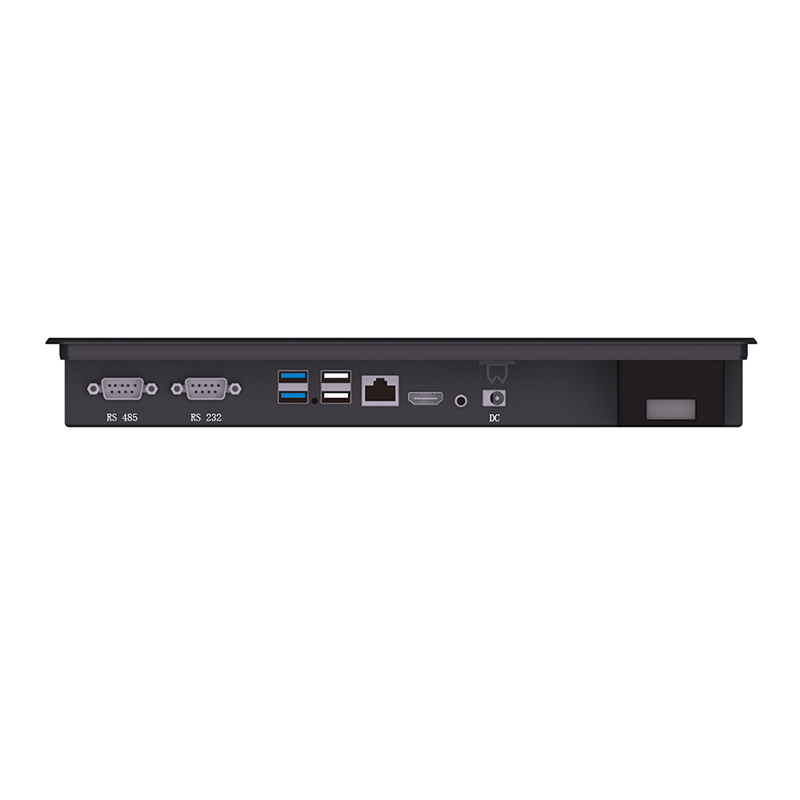

USB Type A
*4,USB 3.0*2+USB 2.0*2
RJ45
*1
HDMI
*1
DC
*1
Headphones
*1 Standard 3.5mm interface
Antenna
*1(WIFI)
RS232
*1
RS485
*1
TF card slot
Reserved
SIM card slot
Reserved
Dimension
315mm*168mm*38mm
Color
Black
RFID
ID card reading mode, HID mode
IP Protection Level
Front panel IP65
Working Temperature
-20 °C to 60 °C
Storage Temperature
-30 °C to 70 °C
Electrostatic discharge
±4kV contact discharge, ±8kV air discharge
3C
OK
CE
OK
Adaptor
AC100V ~ 240V, 50Hz/60Hz, Output DC 12V/4A
Cable
1.2 M
