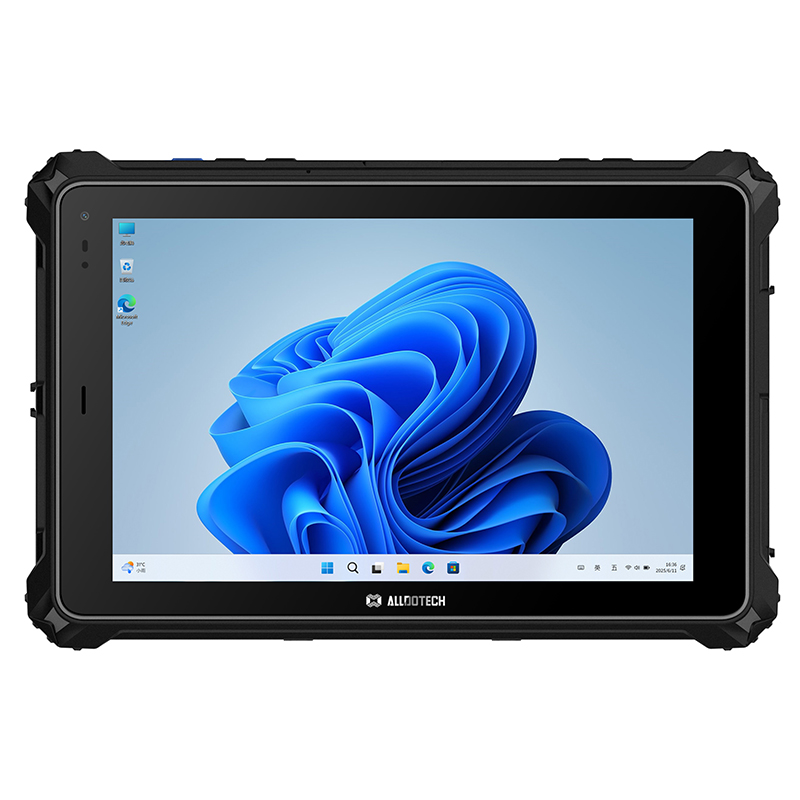

ATR10AJ
Intel N150 quad-core processor, High Energy Efficiency
10" Ultra-Clear IPS Display, 1000 cd/m² Brightness — Sunlight Readable
10Point Touch，Corning Gorilla Glass，Rugged and Durable
4G+WIFI+Bluetooth 5.3, High-Speed and Stable
IP68 Protection Level, 1.5m Drop Resistance, Built for Complex Environments
1D/2D Barcode Scanning, Fingerprint, NFC, RFID (Optional) , Multi-Function Versatility
10" Ultra-Clear IPS Display, 1000 cd/m² Brightness — Sunlight Readable
10Point Touch，Corning Gorilla Glass，Rugged and Durable
4G+WIFI+Bluetooth 5.3, High-Speed and Stable
IP68 Protection Level, 1.5m Drop Resistance, Built for Complex Environments
1D/2D Barcode Scanning, Fingerprint, NFC, RFID (Optional) , Multi-Function Versatility
CPU
intel N150，4-core，Base Clock: 1.2GHz (Turbo Boost up to 3.60GHz)
RAM
8GB
ROM
128GB
Display Screen
10" FHD IPS（MIPI), 1200*1920, 16:10 portrait screen, Brightness: 1000cd/㎡
Touch Panel
10Points Touch, G+G, Hardness 7H Corning Gorilla Glass
Front Camera
5MP fixed-focus
Rear Camera
13MP with Auto Focus
MIC
*1
Speaker
*2，1W/8Ω
G-Sensor
Support
Gyro-Sensor
Support
2G/3G/4G/
GSM: B2/B3/B5/B8 WCDMA: B1/B2/B5/B8 CDMA2000 LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28A/B28B,B12/B13/B14/B66/B71 LTE-TDD: B38/B39/B40/B41
WiFi
WIFI6E 802.11(a/b/g/n/ac/ax) 2.4G+5G+6G
BT
Bluetooth 5.3
Location
GPS、Bei Dou，Galileo、GLONASS
Battery
7.7V 5000Mah
Adapter
19V/3.42A（DC Port）
OS
WIN11
Type-C
*1，Type-C USB3.0 （Support OTG）
USB
*1, USB 2.0
DC
*1，DC 19V/3.42A
HDMI
*1(mini)
Earphone
*1，3.5mm Standard earphone port
RJ45
*1，RJ45 100/mbps
RS232
*1
Pogo pin
Pogo pin*1, 12Pin USB+ Charging
SIM card
*1，Standard Micro SIM Slot
TF card
*1，Max Support 256GB
Dimension
275*179.2*21.8mm
Color
Black
NFC
"13.56MHZ Support:14443A/14443B/15693"
Fingerprint
Support
1D Scanner
275*179.2*21.8mm
2D Scanner
Support
IP Protection Level
IP68
Drop Test
1.5M，Laminate floor
Working Temperature
-20℃~60℃
Storage Temperature
-30℃~70℃
CE
Support
3C
Support
RHOS2.0
Support
IEC62133
Support
Air and sea survey report
Support
IP68
Support
MSDS
Support
UN38.3
Support
