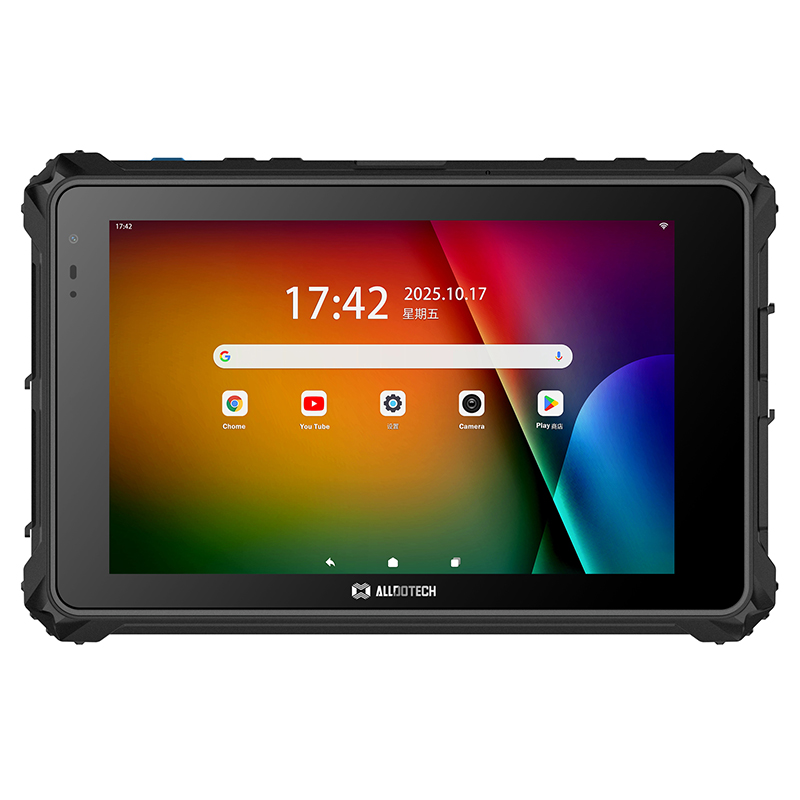

ATR08AQ-5
Qualcomm 6690 Octa-Core Processor, High Energy Efficiency
10" Ultra-Clear IPS Display, 1000 cd/m² Brightness — Sunlight Readable
10Point Touch，Corning Gorilla Glass，Rugged and Durable
4G/5G+WIFI+Bluetooth 5.4, High-Speed and Stable
IP68 Protection Level, 1.5m Drop Resistance, Built for Complex Environments
1D/2D Barcode Scanning, Fingerprint, NFC, RFID (Optional) , Multi-Function Versatility
10" Ultra-Clear IPS Display, 1000 cd/m² Brightness — Sunlight Readable
10Point Touch，Corning Gorilla Glass，Rugged and Durable
4G/5G+WIFI+Bluetooth 5.4, High-Speed and Stable
IP68 Protection Level, 1.5m Drop Resistance, Built for Complex Environments
1D/2D Barcode Scanning, Fingerprint, NFC, RFID (Optional) , Multi-Function Versatility
CPU
QCM6690，Octa-core，2.9GHz
RAM
8GB
ROM
128GB
Display Screen
8"HD IPS(MIPI) 800*1280, 16:10 portrait screen, Brightness: 1000cd/㎡
Touch Panel
10Points Touch, G+G, Hardness 7H Corning Gorilla Glass"
Front Camera
8MP fixed-focus
Rear Camera
13MP with Auto Focus
MIC
*1
Speaker
*2，1.W/8Ω
G-Sensor
Support
Gyro-Sensor
Support
Compass
Support
Light-Sensor
Support
P-Sensor
Support
Acceleration Sensor
Support
2G/3G/4G/5G
GSM: B2/B3/B5/B8 WCDMA: B1/B2/B5/B8 4G-FDD: B1/B2/B3/B4/B5/B7/B8/B20/B26/B28 4G-TDD: B38/B39/B40/B41/B42/B43 4G-4*4MIMO (DL) :B1/B3/B7/B38/B40/B41/B42/B43 4G-2*2MIMO (DL):B2/B5/B8/20/B26/B28/B39/B40 5G-FDD: N1/N2/N3/N5/N7/N8/N20/N28 5G-TDD: N38/N40/N41/N77/N78/N79 5G-2*2MIMO (UL) :N77/N78/N79 5G-4*4MIMO(DL)：N1/N3/N7/N38/N40/N41/N77/N78/N79
WiFi
WIFI7 802.11(a/b/g/n/ac/ax) 2.4G+5G+6G 三频WIFI
BT
Bluetooth 5.4
Location
GPS、Bei Dou，Galileo、GLONASS
Battery
3.85V 10200mAh
Adapter
5V/3A（DC port）
OS
Android 16 with GMS

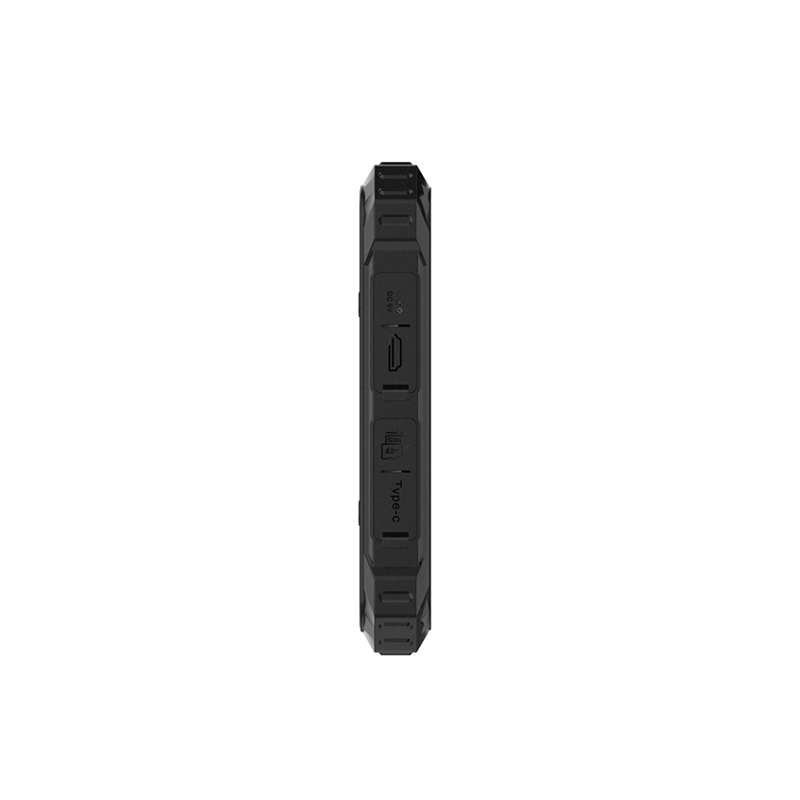

Type-C
*1，Type-C USB3.0 Support OTG
USB
*1, USB 2.0
DC
*1，DC 5V/3A
HDMI
*1
Earphone
*1，3.5mm Standard earphone port

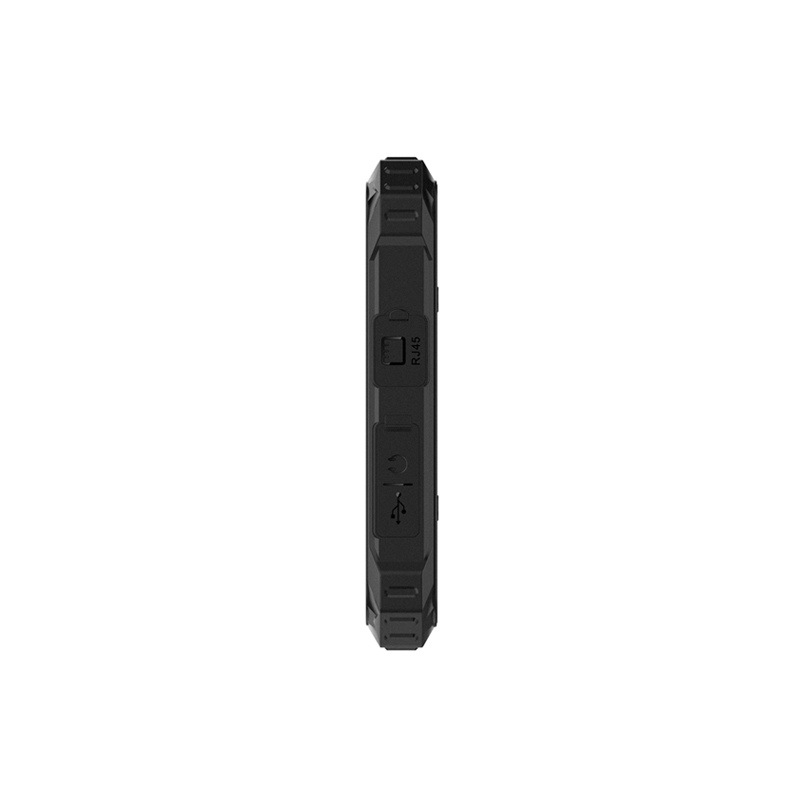

RJ45
*1，RJ45 100/mbps

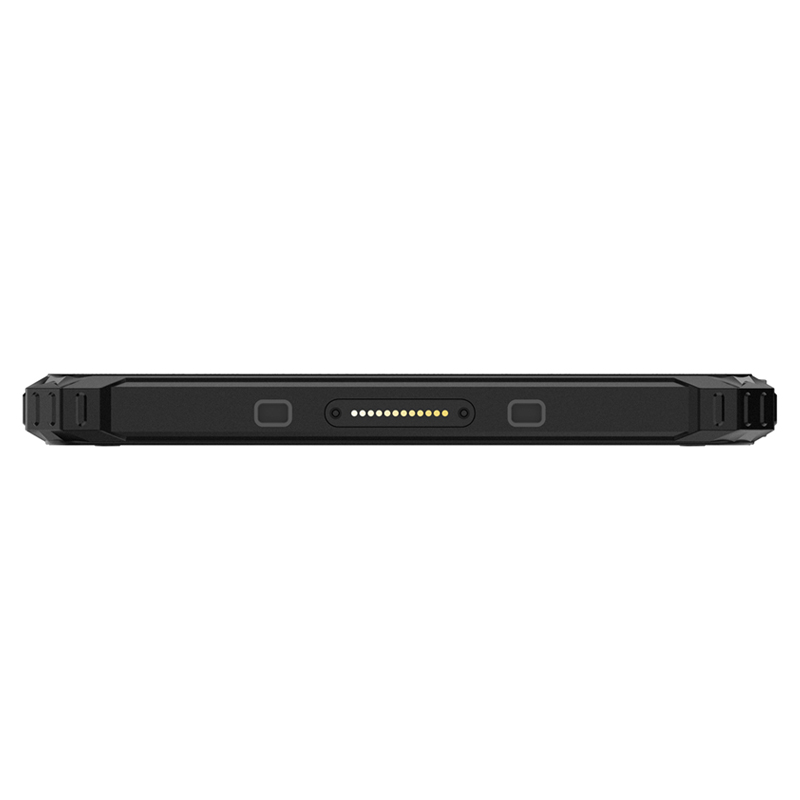

Pogo pin
Pogo pin*1, 12Pin USB+Charging
SIM card
*1，Standard Micro SIM Slot
TF card
*1，Max Support 256GB
Dimension
226*145*21.8mm
Color
Black
NFC
13.56MHZ Support:14443A/14443B/15693
Fingerprint
Support
1D Scanner
Support
2D Scanner
Support
IP Protection Level
IP68
Drop Test
1.5M，Laminate floor
Working Temperature
-20℃~60℃
Storage Temperature
-30℃~70℃
CE
Support
3C
Support
RHOS2.0
Support
IEC62133
Support
Air and sea survey report
Support
IP68
Support
GMS
Support
MSDS
Support
UN38.3
Support
