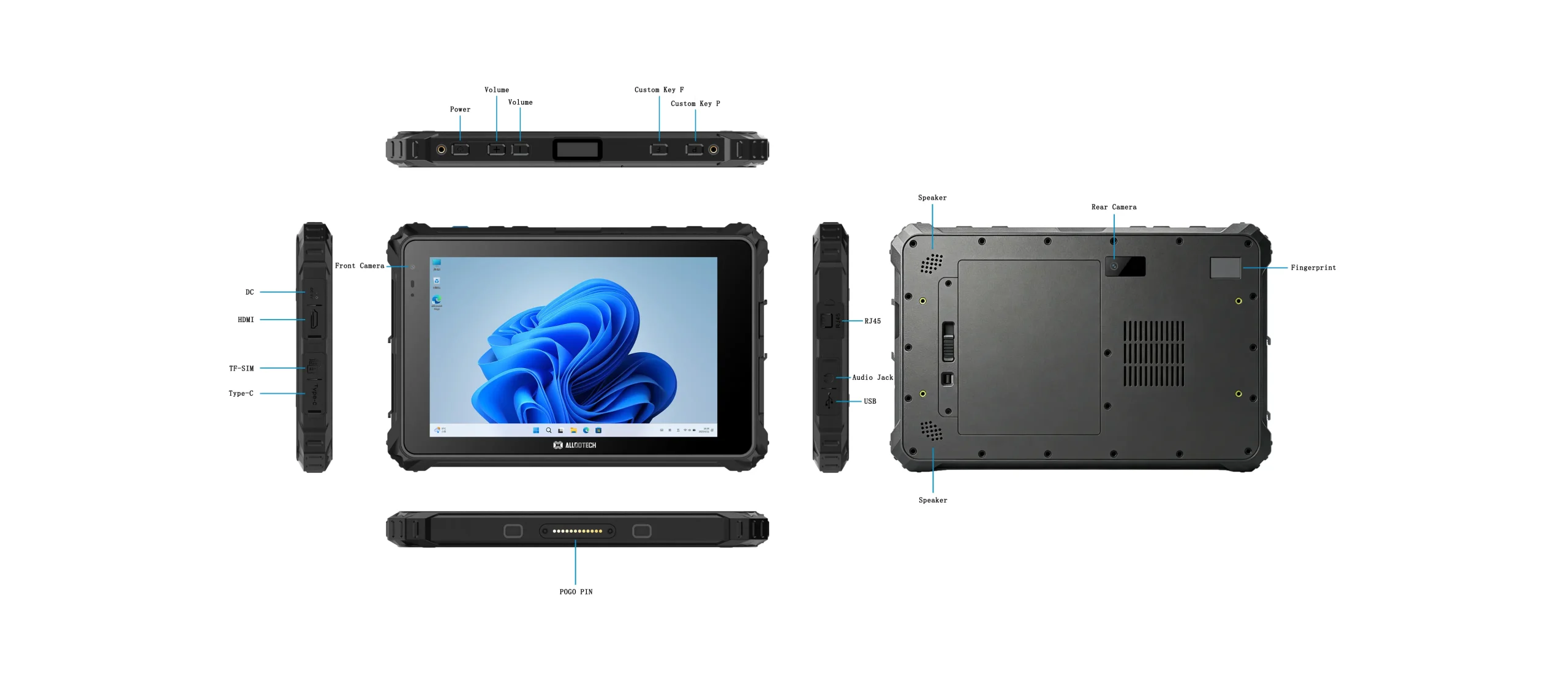

ATR08AJ
Intel N150 quad-core processor, High Energy Efficiency
8" High-Definition IPS Display, 1000 cd/m² Brightness — Sunlight Readable
10Point Touch,Corning Gorilla Glass,Rugged and Durable
4G+WIFI+Bluetooth 5.3, High-Speed and Stable
IP68 Protection Level, 1.5m Drop Resistance, Built for Complex Environments
1D/2D Barcode Scanning, Fingerprint, NFC, RFID (Optional) , Multi-Function Versatility
1000nits8"Intel N150IP68Modular DesignWindows 11

ATR08AJ

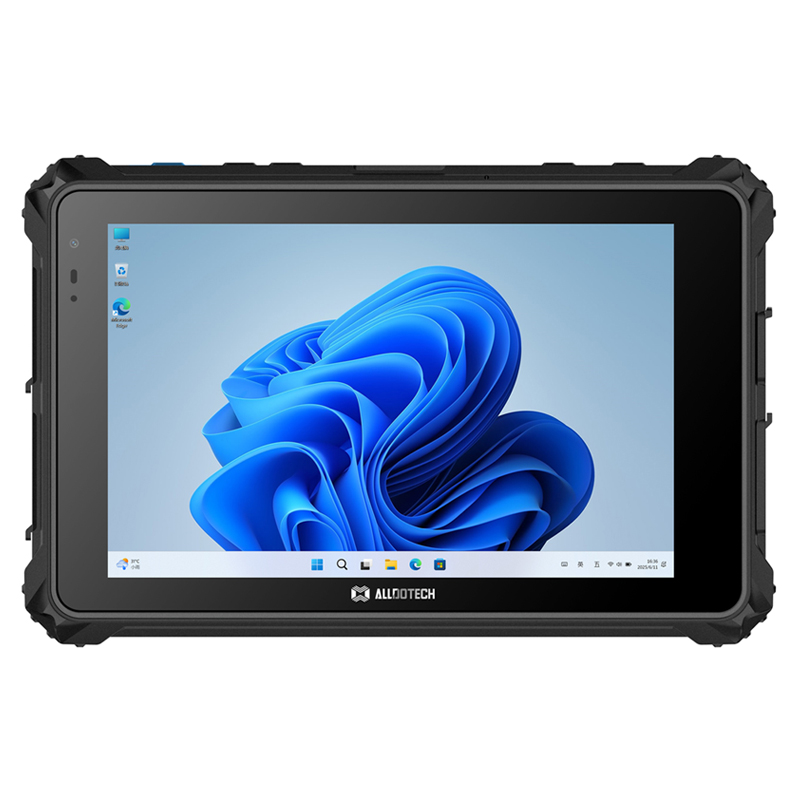

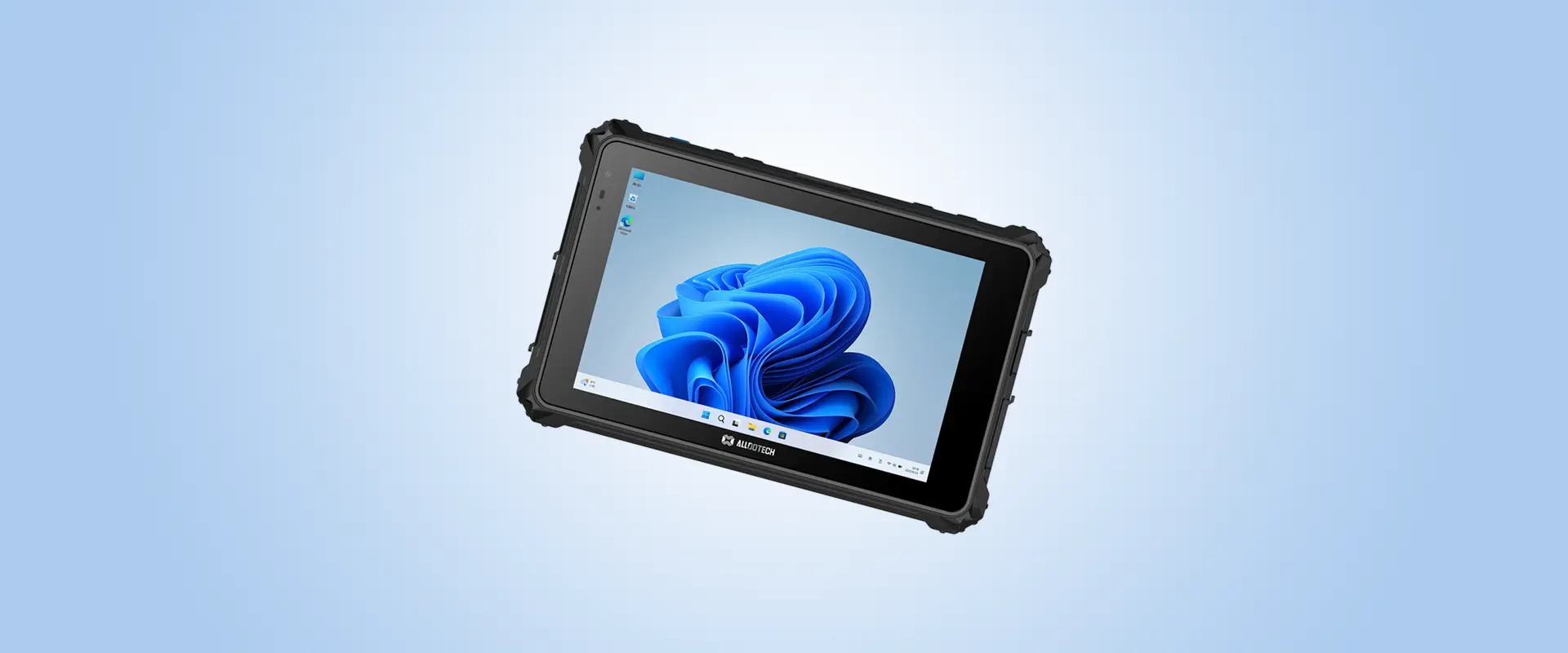

8-inch Intel N150 High-Efficiency Rugged Tablet

All-weather, all-terrain, redefining the standard for field operations




Intel N150 Quad-Core Processor | Smooth Multitasking


Achieve a balance between performance and power consumption.
Meet the demands of high-intensity applications such as industrial inspection, mobile office, and data collection.





1000 cd/m² Brightness | Sunlight Readable | Wide Viewing Angle


Even in strong sunlight, outdoor construction sites, or vehicle-mounted environments, it remains clearly visible.

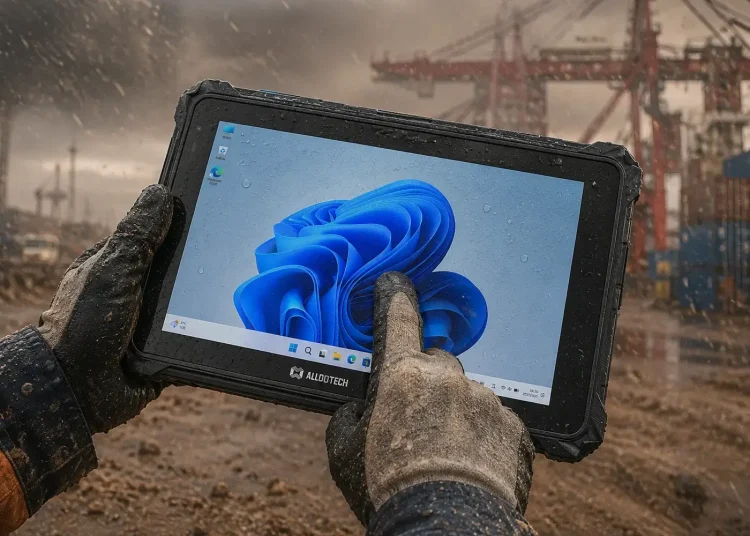

IP68 Protection | 1.5m Drop Resistance | Corning Gorilla Glass


Fearless of dust, rain, drops, and vibrations, it thrives in complex industrial environments.





4G Connectivity | WiFi High-Speed Transmission | Bluetooth 5.3


Stable connection, real-time communication. Achieve real-time on-site data transmission and efficient collaboration.



1D / 2D Barcode Scanner | NFC | RFID (Optional) | Fingerprint Recognition

Multi-functional and flexible expansion

Meeting the needs of multiple industries such as warehousing and logistics, asset management, and identity verification.

Warehousing
Intelligent and efficient management of warehouse data in the storage and handling workflow.
Smart Manufacturing
AI-powered smart manufacturing: Effective management of production processes.
Construction Engineering
Efficient protection of design data in demanding construction environments.
Exploration and Testing
Designed for round-the-clock protection, it accurately collects data during outdoor monitoring.
CPU
intel N150, 4-core, Base Clock: 1.2GHz (Turbo Boost up to 3.60GHz)
RAM
8GB
ROM
128GB
Display Screen
8"HD IPS(MIPI) 800*1280, 16:10 portrait screen, Brightness: 1000cd/㎡
Touch Panel
10Points Touch G+G, Hardness 7H Corning Gorilla Glass
Front Camera
5MP fixed-focus
Rear Camera
13MP with Auto Focus
MIC
*1
Speaker
*2,1W/8Ω
G-Sensor
Support
Gyro-Sensor
Support
2G/3G/4G/
"GSM: B2/B3/B5/B8 WCDMA: B1/B2/B5/B8 CDMA2000 LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28A/B28B,B12/B13/B14/B66/B71 LTE-TDD: B38/B39/B40/B41"
WiFi
WIFI6E 802.11(a/b/g/n/ac/ax) 2.4G+5G+6G 三频 WIFI
Location
GPS、Bei Dou,Galileo、GLONASS
BT
Bluetooth 5.3
Battery
7.6V 5100Mah
Adapter
19V/3.42A(DC Port)
OS
WIN11

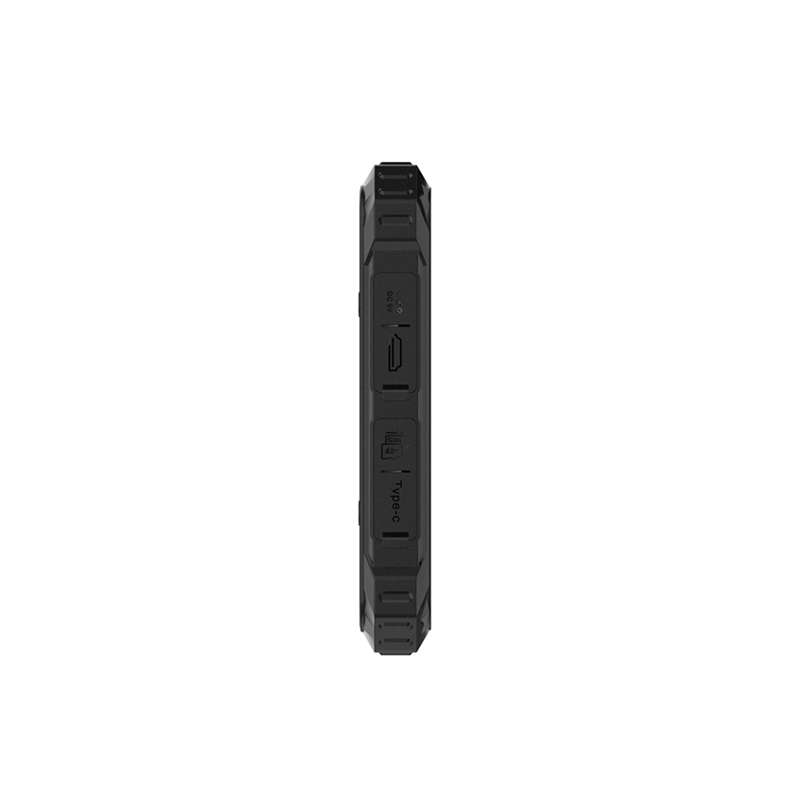

Type-C
*1,Type-C USB3.0 (Support OTG)
USB-A
*1,USB 2.0
DC
*1,DC 19V/3.42A
HDMI
*1,mini HDMI
Earphone
*1,3.5mm Standard earphone port

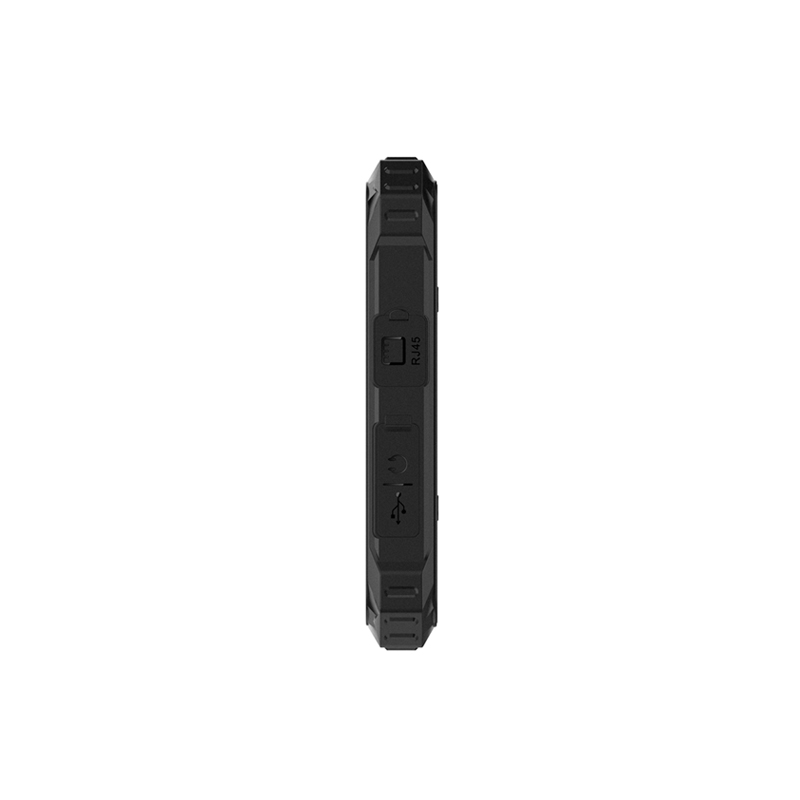

RJ45
*1,RJ45 100/mbps

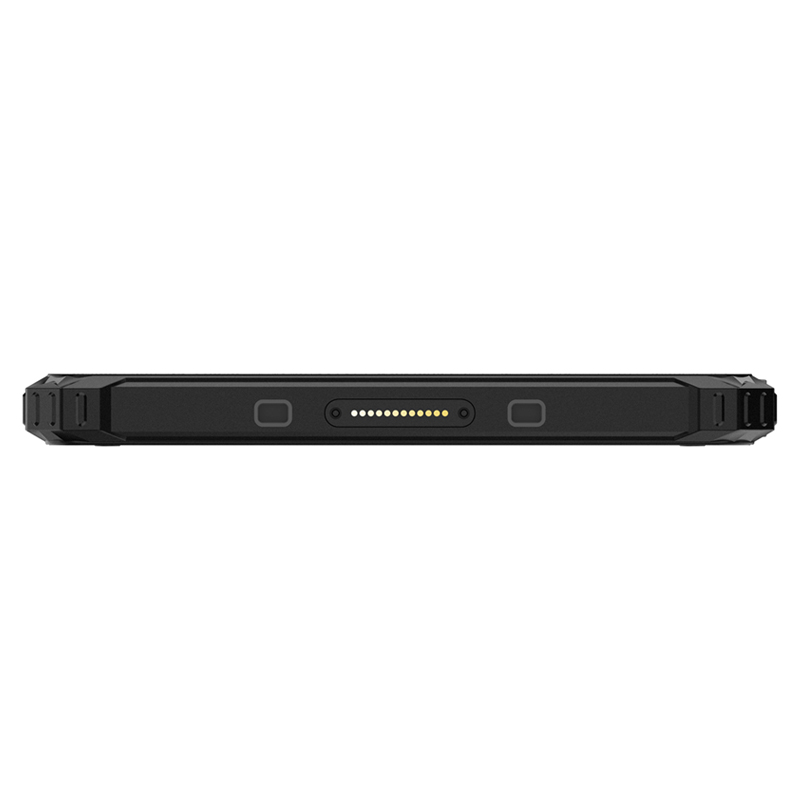

Pogo pin
Pogo pin*1, 12Pin USB+ Charging
SIM card
*1,Standard Micro SIM Slot
TF card
*1,Max Support 256GB
Dimension
226*145*21.8mm
Color
Black
NFC
13.56MHZ Support:14443A/14443B/15693"
Fingerprint
Support
1D Scanner
Support
2D Scanner
Support
IP Protection Level
IP68
Drop Test
1.5M,Laminate floor
Working Temperature
-20℃~60℃
Storage Temperature
-30℃~70℃
CE
Support
3C
Support
RHOS2.0
Support
IEC62133
Support
Air and sea survey report
Support
IP68
Support
MSDS
Support
UN38.3
Support
