Panel PC Intel Series
Intel Bay Trail, Gemini Lake, Elkhart Lake, 6th Gen Skylake & 7th Gen Kaby Lake, 8th Gen Whiskey Lake & 10th Gen Comet Lake-U processors
SO-DIMM, M-SATA, M.2 SATA, and M.2 NVMe storage. Comes standard with an HD display and capacitive touchscreen, and supports dual displays

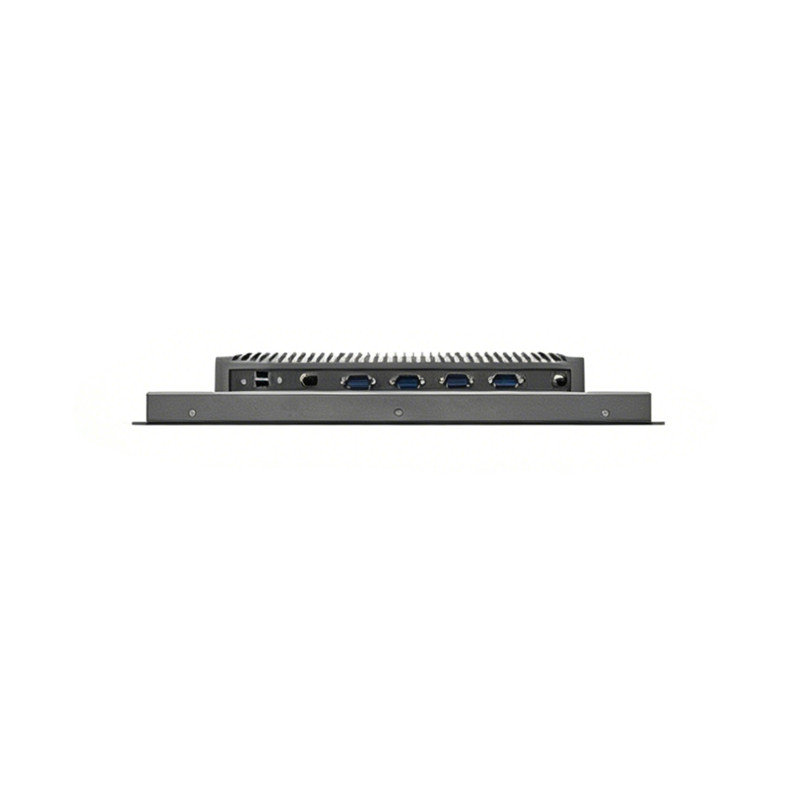

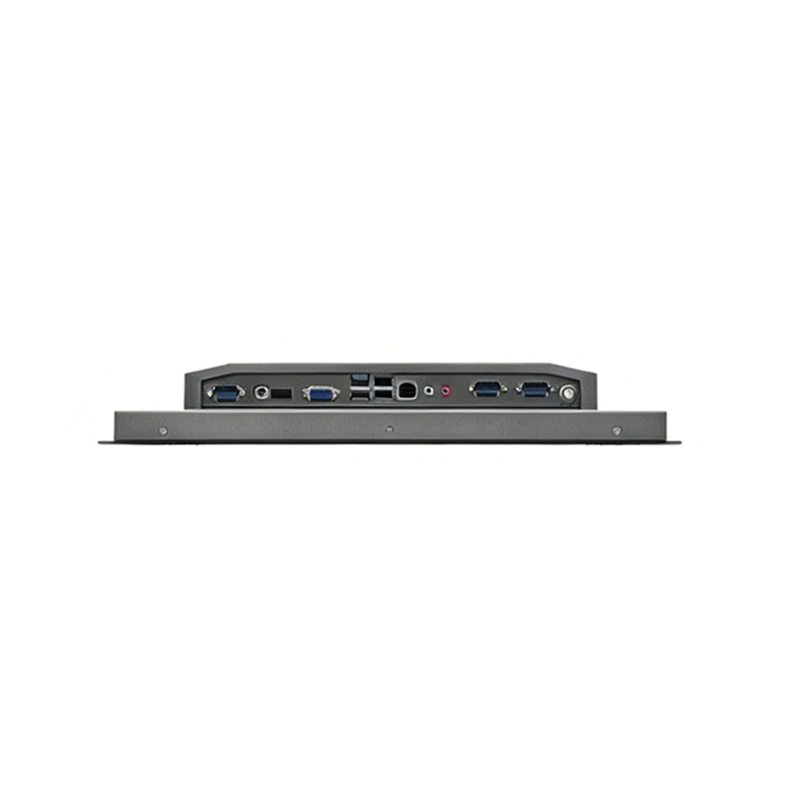

Comes standard with 4 USB, 2 LAN, and 2 COM ports, and is expandable with 2 additional USB ports and multiple COM port specifications
1 x Mini-PCIe (for Wi-Fi) and 1 x SIM card; compatible with 3G, 4G, and 5G modules

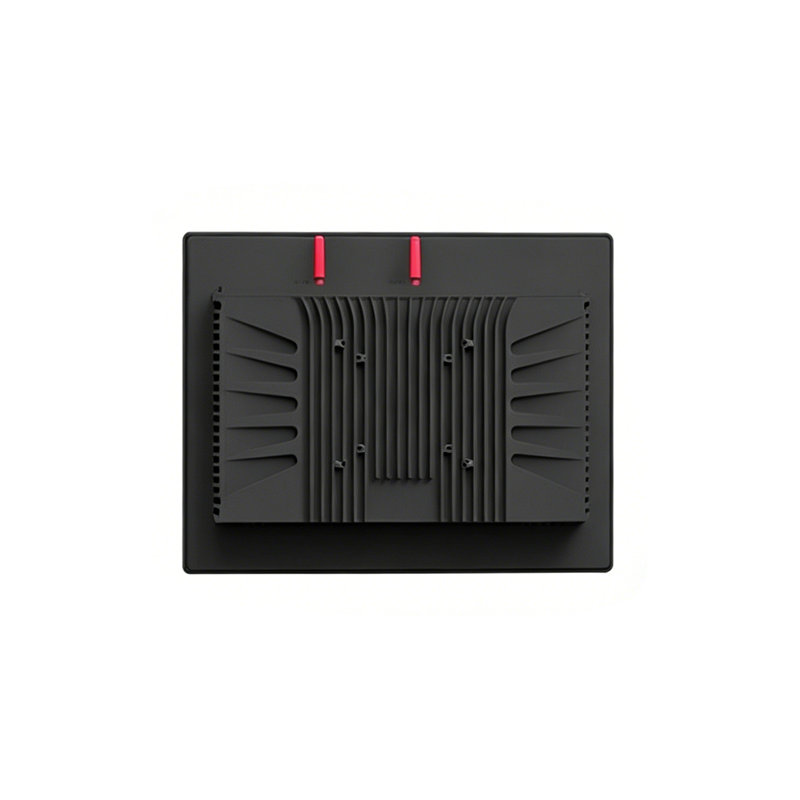

VESA mount installation, including wall-mounted and desktop setups
Fanless design with a patented industrial aesthetic for a sleek and elegant appearance
Capacitive touchscreenCustomizableIntelSOCIP65
BIOS
AMI BIOS
Processor
Supports Intel Bay Trail J1900 processor
Chipset
Intel SOC
Graphic Display
Intel UHD Graphics 600
Internet
RTL8111H/RTL8111G
Sound Effects
Realtek ALC269HD
Memory
Single DDR4 2133/2400MHz, up to 8GB per module
Hard Drive
M-SATA 128GB
Function
Supports WiFi, Bluetooth, 3G/4G modules, 5G modules, auto power-on, hardware monitoring, and Wake-on-LAN
