In industrial projects, small hardware limitations often become major deployment issues.

A workstation may need a serial port, barcode scanner, and USB drive at the same time—but there are not enough USB ports. Some sites have no Wi-Fi coverage, making data transmission difficult. Others operate in extreme temperatures where consumer tablets quickly fail.

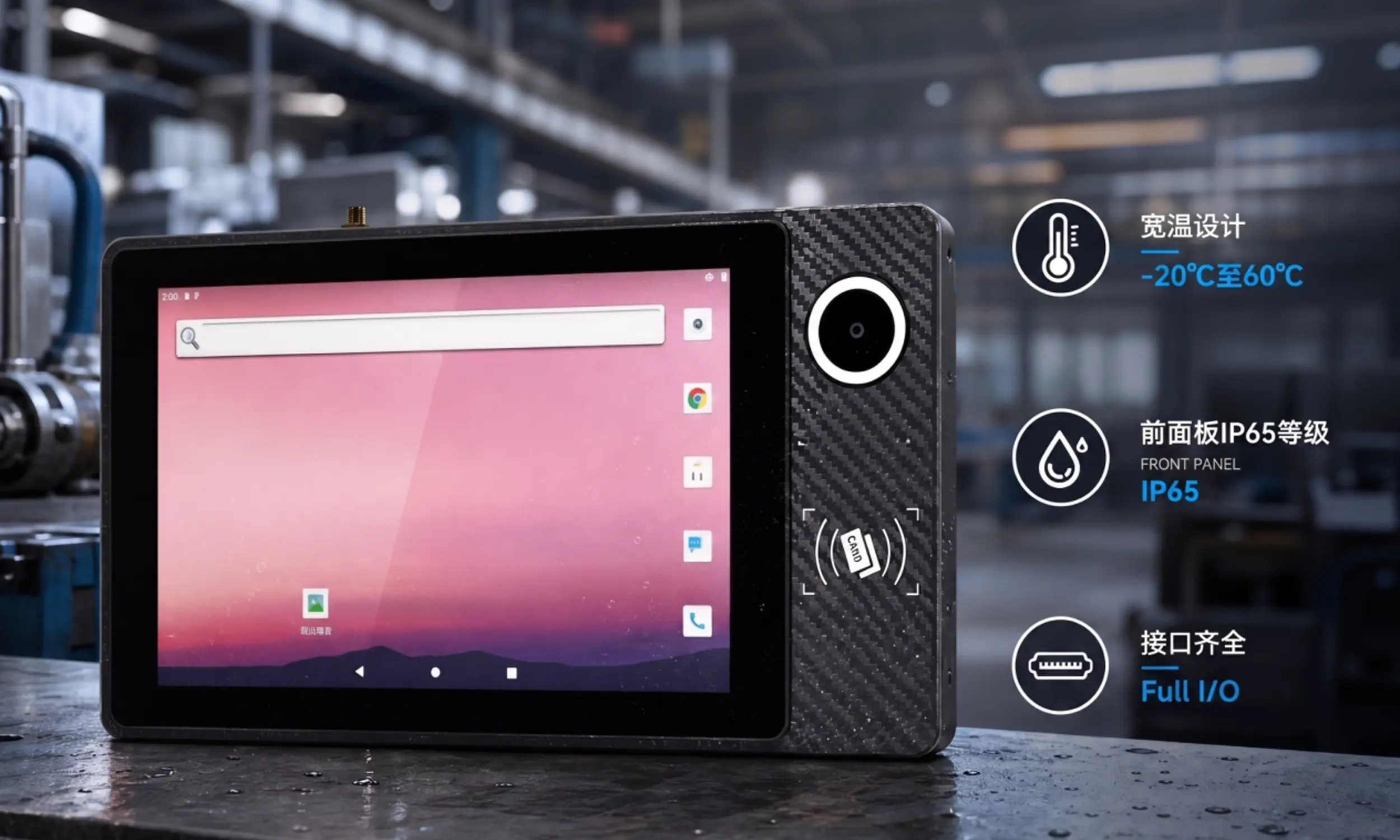

The ATG10AR Industrial PC is designed to solve these challenges. With rich I/O, wide-temperature operation, and an open Android platform, it adapts easily to different industrial environments.

1. Rich I/O for Easy Deployment

Limited interfaces often lead to extra USB hubs or serial adapters. These accessories increase cost and create additional failure points.

ATG10AR comes with the interfaces industrial users need.

• 4 × USB ports (2 × USB 3.0 + 2 × USB 2.0)
• RJ45 Ethernet
• HDMI
• RS232
• RS485

Three USB ports can connect peripherals such as keyboards, barcode scanners, and USB drives simultaneously. One USB 3.0 port is reserved for software upgrades.

RS232 is ideal for point-to-point devices like weighing scales and instruments. RS485 supports multi-device communication over distances up to 1,200 m, making it suitable for sensors, PLCs, and inverters.

The device also includes:

• Wi-Fi antenna interface
• Optional 4G antenna
• TF card slot (up to 512 GB)
• SIM card slot for optional 4G communication

These features make the ATG10AR suitable for both fixed production lines and mobile industrial applications.

2. Wide-Temperature Reliability

Industrial environments are rarely climate-controlled.

Outdoor inspections may face -20°C winters, while enclosed workshops can exceed 50°C.

ATG10AR operates from -20°C to 60°C and stores safely between -30°C and 70°C.

Reliable performance comes from:

• Industrial-grade Rockchip RK3568 processor
• Wide-temperature LCD with anti-condensation design
• Fanless aluminum alloy heat dissipation

The front panel is rated IP65, protecting against dust and water splashes. Operators can wipe the screen with a damp cloth without worrying about water damage.

The device uses external power instead of an internal battery. This eliminates battery aging, swelling, and high-temperature safety risks. It is ideal for 24/7 continuous operation.

The included power adapter supports 100–240V AC input and provides 12V/4A (48W) output for stable operation, even with multiple USB devices connected.

3. Reliable Performance

ATG10AR is powered by the Rockchip RK3568, a quad-core 64-bit processor based on the Cortex-A55 architecture.

It delivers low power consumption, low heat generation, and stable industrial performance.

An integrated 1 TOPS NPU supports lightweight edge AI applications, including:

• Defect inspection
• Face recognition
• AI image processing

Standard memory is 4GB RAM + 64GB storage.

Optional configurations include:

• 6GB + 128GB
• 8GB + 128GB

For HMI display and data entry, 4GB is sufficient. For database services, video streaming, or multitasking, 8GB is recommended.

The system comes with Android 13 and also supports Android 11 for legacy industrial software compatibility.

4. Flexible Expansion Options

Different projects require different functions.

ATG10AR supports optional expansion modules that can be factory-installed or added later by qualified engineers.

Available options include:

• RFID reader (HID mode, optional HF)
• 1D/2D industrial barcode scanner
• 5 MP front or bottom USB camera
• External three-color warning light
• Third-party MDM integration

These modules support applications such as access control, warehouse management, production traceability, face authentication, equipment status indication, and remote device management.

Modular expansion reduces hardware replacement costs and simplifies future upgrades.

5. Typical Applications

Production Line Workstations

Connect to MES systems for production data collection and digital work instructions. Multiple interfaces support scanners, keyboards, and USB devices simultaneously.

Smart Warehousing

Optional RFID and barcode scanning improve inventory management. Wi-Fi and optional 4G ensure reliable connectivity. TF card storage supports offline data caching.

Vehicle-Mounted Terminals

Suitable for AGVs, forklifts, mining trucks, and other industrial vehicles. RS485 connects directly to vehicle controllers, while optional 4G enables real-time communication.

Self-Service Equipment

Ideal for kiosks, vending machines, charging stations, and smart lockers. Android supports secondary development, while the fanless, battery-free design ensures long-term reliability.

Built for Industrial Reliability

ATG10AR combines industrial-grade performance with flexible connectivity and expansion.

Whether deployed on factory floors, in warehouses, on vehicles, or inside self-service equipment, it delivers stable operation, easy integration, and long-term reliability.
