AT156I
Intel Core i7-13800H High-Performance Processor
15.6" High-Brightness (500 cd/m²) Sunlight-Readable Display — Enables Continuous Outdoor Operation
Versatile Modular Expansion — RJ45, COM, Thunderbolt, and Custom Mil-Spec Connectors
Supports 4G/5G, WIFI, Bluetooth, and Dual-Mode GPS/BeiDou Positioning
Primary & Secondary Dual-Battery Architecture — Eliminates Power Anxiety in Field Operations and Delivers Extended Runtime
Military-Grade Rugged Protection — Shock-Resistant, Vibration-Resistant, Wide Operating Temperature Range, and Ready for Harsh Environments
15.6"Customizablei7-13800HModular DesignWindows 11

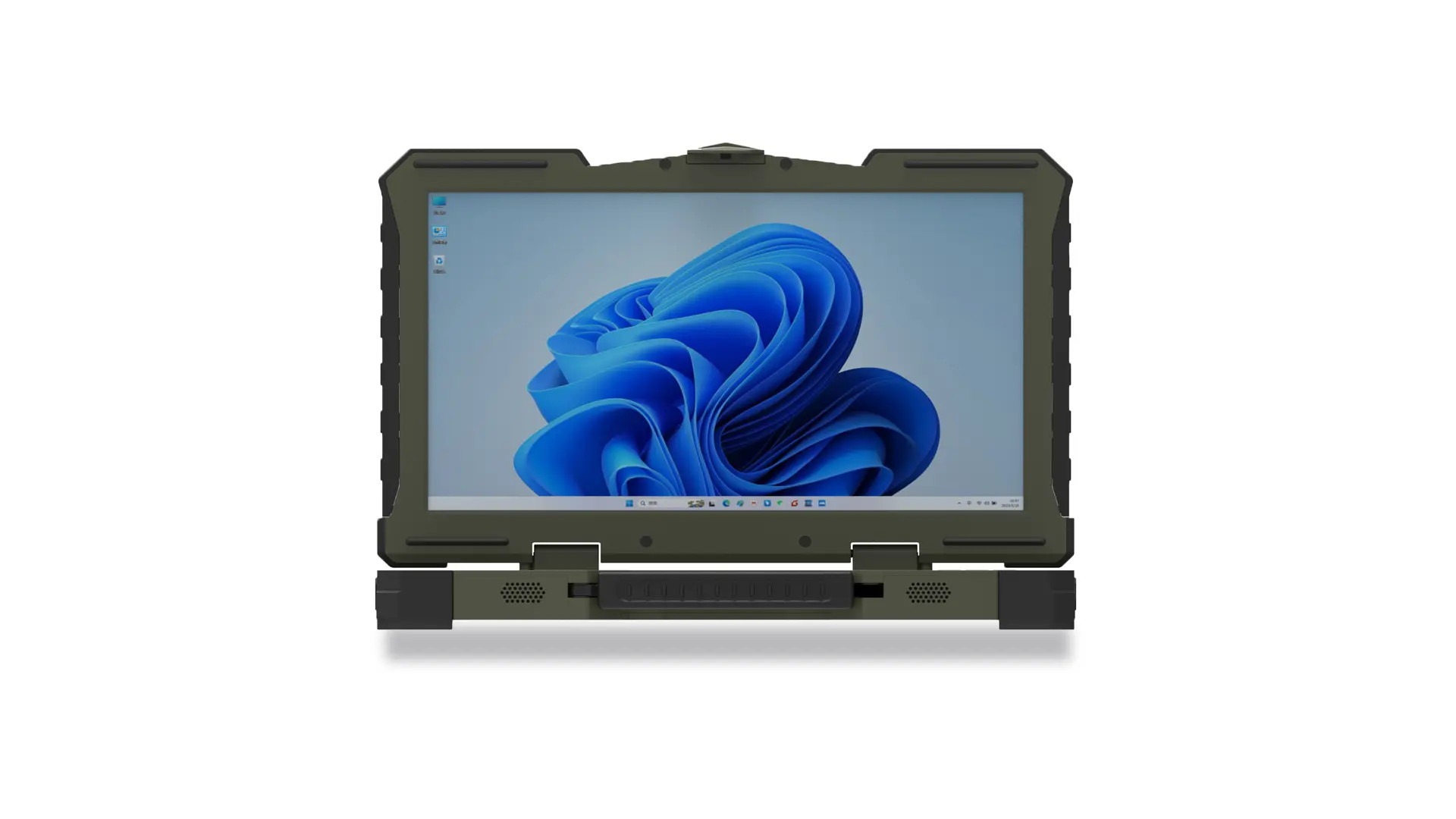

AT156I Rugged Laptop

Industrial-grade protection · Ultimate performance · Full-scenario connectivity

Powerful Computing Performance

Powered by the Intel Core i7-13800H processor, delivering exceptional multi-thread performance and computing power for professional applications.
Whether handling GIS mapping, engineering software, video analysis, or complex industrial workloads, the AT156I performs with confidence.

Sunlight-Readable Display
Clear Visibility Anywhere
The 15.6-inch high-brightness display delivers up to 500 nits of brightness, ensuring excellent readability even under direct sunlight.
Perfect for field operations, outdoor inspections, and mobile work environments.

Full Connectivity
Stay Connected Anywhere
Supports 4G/5G cellular communication, Wi-Fi networking, and Bluetooth connectivity for reliable communication in any environment.

Precision Positioning
Accurate Navigation and Tracking
Integrated GPS and BeiDou dual-mode positioning technology delivers reliable location tracking and navigation support.
Ideal for field inspection, emergency response, surveying, and fleet management.

Dual-Battery Architecture
Power Through the Entire Workday
The innovative dual-battery design provides extended runtime for demanding field operations.
Reduce downtime and maintain productivity in remote environments.

Industrial-Grade Rugged Protection
Built for harsh environments with an industrial-grade rugged design, it offers excellent impact resistance, vibration protection, and environmental adaptability.
Stable and reliable even in complex industrial settings, severe weather conditions, and high-intensity mobile operations.

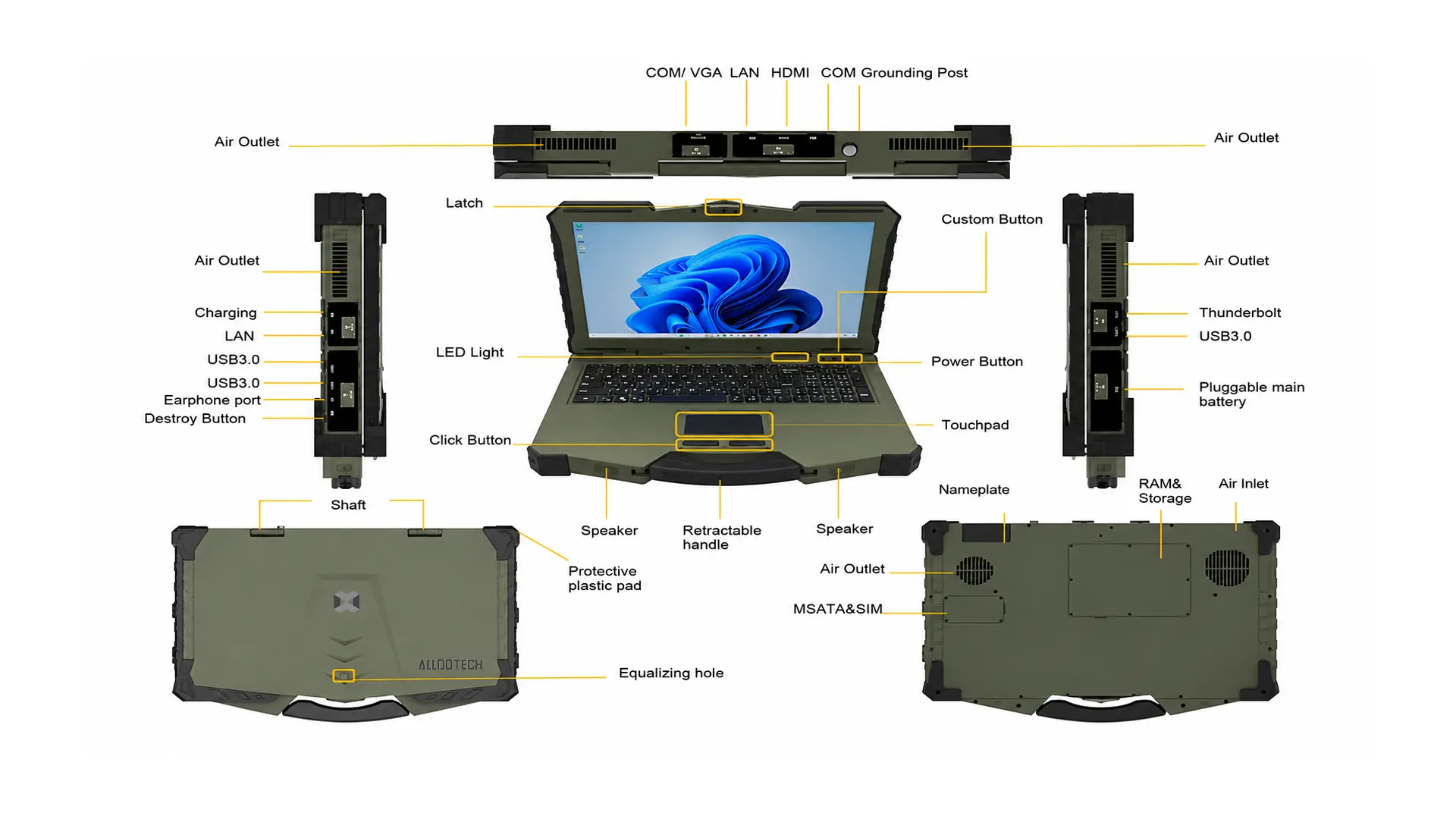

All-in-one Interface Expansion
Versatile Ports, Multiple Uses
Designed for industrial and professional applications, it integrates a variety of standard and specialized interfaces, enabling quick connections to various devices and systems.

Designed for energy inspection, public safety, emergency command, field surveying, smart manufacturing, and special industries, it integrates high-performance computing, versatile expansion interfaces, all-weather communication, and military-grade protection to enhance efficiency in complex environments.

CPU
Intel® Core™ i7-13800H Processor 24M Cache, up to 5.20 GHz
RAM
16GB/32GB/64GB DDR5
ROM
Optional 128GB/256GB/512GB/1TB
Display Screen
15.6inch,Resolution 1920*1080,Brightness 500cd/㎡,Sunlight Readable
Touch Panel
G+F+F(Capacitive multi-touch screen)
Camera Front Camera
Reserved USB front camera structure position
Voice MIC
Speaker*2, Analog microphone
Sensors G-Sensor
Hall
2G/3G/4G
Supports SIM card and 4G network
WiFi
Support
BT
Support
Location
GPS/BEIDOU
Battery
Main battery capacity:10000mAh Backup battery capacity:2000mAh
Adapter
Input voltage: AC100V~240V, 60/50Hz Output voltage: DC19V, 9.47A
Indicator Light
Power *1 Storage*1 Capslock*1 Battery charging *1
OS
Support for Windows 10 and Windows 11
Port
USB3.0 *3 Power aviation plug*1 RJ45*2 COM*2(Or COM*1+VGA*1) HDMI*1
Dimension
398.35*253.92*46.5mm
Weight
Mg-al material 4.5KG
Color
Brown green
IP Protection Level
Humidity:98%(25℃)
Ruggedization
EMC and ESD meet the requirements of GJB 151B-2013Temperature, damp heat, vibration, impact, drop, salt mist, mold meet the requirements of GJB 322A-98 and GJB 367A-2001
Working Temperature
-20℃~55℃
Storage Temperature
-40℃~70℃
CE
OK
RoHS 2.0
OK
IEC62133
OK
Air and sea survey report
OK
GMS
OK
MSDS
OK
UN38.3
OK
