ATR10AT
MediaTek 8781 Octa-Core Processor, High Energy Efficiency
10" Ultra-Clear IPS Display, 1000 cd/m² Brightness — Sunlight Readable
10Point Touch,Corning Gorilla Glass,Rugged and Durable
4G+WIFI+Bluetooth 5.2, High-Speed and Stable
IP68 Protection Level, 1.5m Drop Resistance, Built for Complex Environments
Support NFC, Optional 1D/2D Barcode Scanning, Fingerprint and RFID, Multi-Function Versatility
Supports Multiple Touch Modes: Stylus, Finger, Glove, and Wet Touch
10.1"1000nitsAndroid 16IP68Modular DesignRTK Precision Positioning

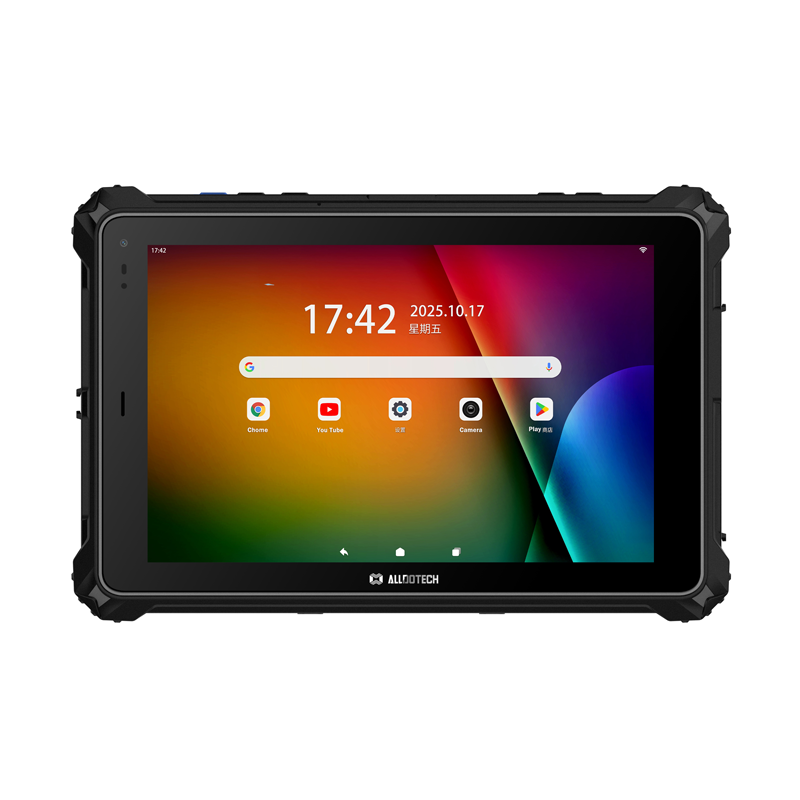

10-inch MediaTek 8781 High-Efficiency Rugged Tablet

Powerful Performance · Seamless Connectivity · Built to Last

Power Meets Efficiency
MediaTek 8781 octa-core processor
Handles multitasking and industry apps with ease
Smooth operation and fast response
Delivers reliable power for mobile work and field operations
Fast. Stable. Efficient.

Crystal Clear in Any Light
10-inch HD IPS display1000 nits high brightness
Clearly visible under direct sunlight
Wide viewing angle with excellent detail
Perfect for inspection, logistics, and outdoor work
Bright sun? No problem.

Smooth Touch, Tough Build
10-point capacitive touch
Smooth and responsive operation
Corning Gorilla Glass cover
Scratch-resistant and impact-resistant
Built for long-term use in harsh environments
Works with gloves. Survives drops.

Always Connected
Seamless connectivity across any scenario
4G LTE for mobile communication
High-speed WiFi
Bluetooth 5.2 wireless transmission
Enables efficient collaboration between people, devices, and data
People, devices, data — always in sync.

IP68 Protection
Engineered for Tough Environments
Dustproof and waterproof design
1.5m drop protectionWithstands rain, dust, and harsh conditions
Ensures reliable non-stop operation
Rain or shine. Drop or bump. Keeps working.

One Device, Multiple Functions
NFC contactless communication
Optional 1D/2D barcode scanning, Fingerprint identification and RFID functionality
Fast data capture and authentication, meets digital needs across industries
Capture anything, anywhere.

Default black design, customizable colors
Displays, memory, sensors, and other components are all available as customizable options

The ATR10AQ-5 is designed to withstand a wide range of harsh and challenging environments, providing robust protection for your data.

ATX11AT light rugged tablet Applicable Scenarios
CPU
MTK 8781, Octa-core,2.2GHz
RAM
8GB
ROM
128GB
Display Screen
10" FHD IPS(MIPI), 1200*1920, 16:10 portrait screen, Brightness: 1000cd/㎡
Touch Panel
10Points Touch, G+G, Hardness 7H Corning Gorilla Glass
Front Camera
8MP fixed-focus
Rear Camera
13MP with Auto Focus and Flashlight
MIC
*1
Speaker
*2,1W/8Ω
Motor
*1
G-Sensor
Support
Gyro-Sensor
Support
Compass
Support
Light-Sensor
Support
P-Sensor
Support
Acceleration Sensor
Support
2G/3G/4G
GSM: B2/B3/B5/B8 WCDMA: B1/B2/B5/B8 CDMA2000 LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28A/B28B,B12/B13/B14/B66/B71 LTE-TDD: B38/B39/B40/B41
WiFi
WIFI5 802.11(a/b/g/n/ac/)
BT
Bluetooth 5.2
Location
GPS、Bei Dou,Galileo、GLONASS
Battery
3.8V 10200Mah
Adapter
5V/3A(DC Port)
OS
Android 16 with GMS
Type-C
*1,Type-C USB3.0 (Support OTG)
USB
*1, USB 2.0
DC
*1,DC 5V/3A
HDMI
*1(mini)
Earphone
*1, 3.5mm Standard earphone port
RJ45
*1,RJ45 100/mbps
RS232
*1

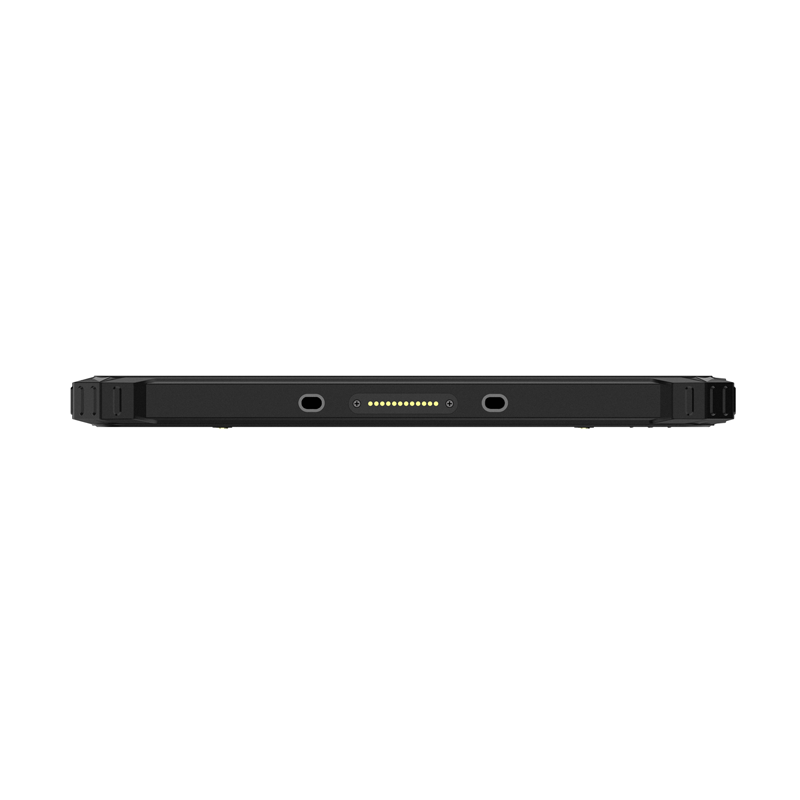

Pogo pin
Pogo pin*1, 12Pin USB+ Charging
SIM card
*1,Standard Micro SIM Slot
TF card
*1,Max Support 256GB
Dimension
275*179.2*21.8mm
Color
Black
NFC
3.56MHZ Support:14443A/14443B/15693
1D Scanner
Optional
2D Scanner
Optional
IP Protection Level
IP68
Drop Test
1.5M,Laminate floor
Working Temperature
-20℃~60℃
Storage Temperature
-30℃~70℃
CE
Support
3C
Support
RHOS2.0
Support
IEC62133
Support
Air and sea survey report
Support
IP68
Support
GMS
Support
MSDS
Support
UN38.3
Support
